Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
- Remove the knee airbag.
(Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

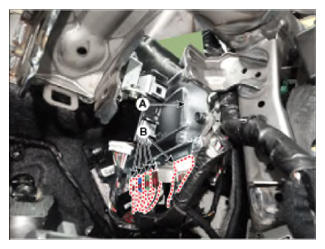

- Remove the SVM unit (A) after disconnecting the cable (B) and nuts.
