Repair Procedures: Inspection: Notes
NOTE:
Steering Wheel Remote Control system (SWRC) can be diagnosed by GDS because it receives and sends signals through CAN communication.

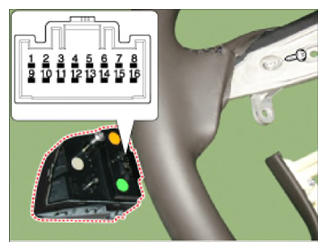

- Check for resistance between terminals in each switch position (LH).
[Audio]

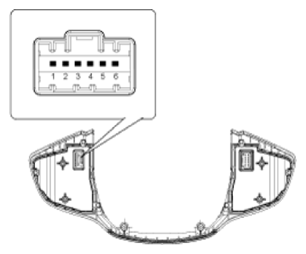

Switch Connector Terminal Resistance (±5%) SEEK UP 3-6 390 Ω SEEK DN 3-6 610 Ω Mode 3-6 910 Ω MUTE 3-6 1.38 kΩ Voice 3-6 2.13 kΩ END 3-6 3.68 kΩ SEND 3-6 8.58 kΩ - Check for resistance between terminals in each switch position (RH).
[Cruise]
| Switch | Connector Terminal | Resistance (± 5%) |
|---|---|---|
| CANCEL | 3-4 | 390 Ω |
| RES+ | 3-4 | 610 Ω |
| SET- | 3-4 | 910 Ω |
| Cruise ON/OFF | 3-4 | 1.38 kΩ |
| SLD | 3-4 | 2.13 kΩ |
| SCC | 3-4 | 3.63 kΩ |
