Repair Procedures: Replacement
- Open the cover and loosen the front seat mounting bolts.
Tightening torque:
49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

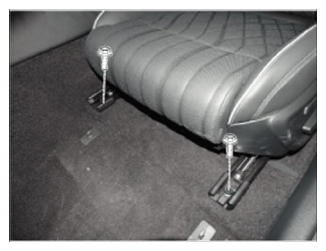

[Front]

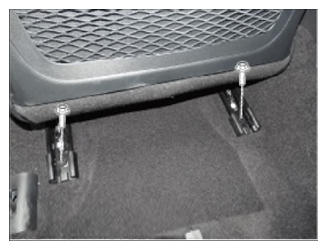

[Rear]

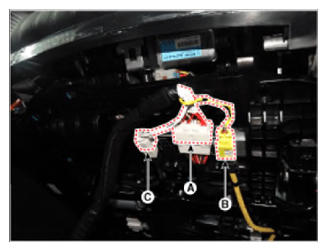

- Disconnect the main connector (A), front seat belt buckle connector (C) and airbag connector (B).
- To install, reverse the removal procedure.
Information
The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
