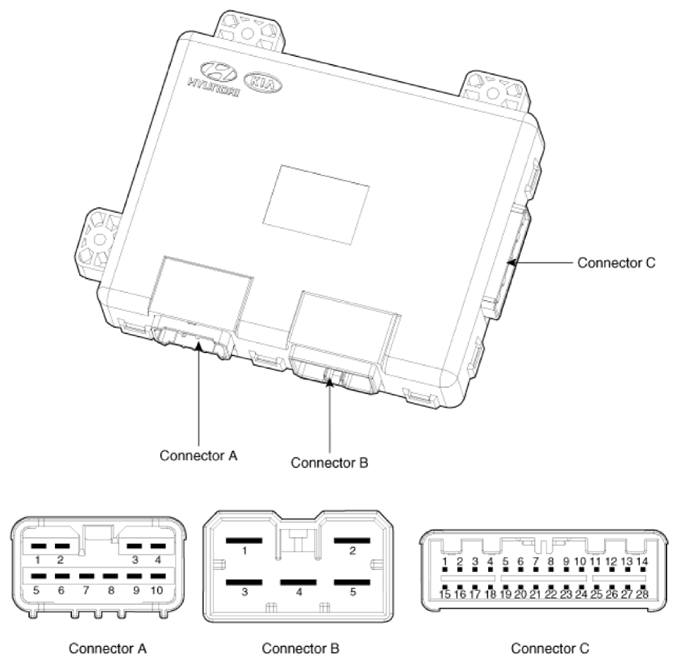

| 1 |
Cushion extension motor (Front) |
Battery (+) |
Slide switch (Front) |
| 2 |
Recline motor (Front) |
Ground |
Recline switch (Front) |
| 3 |
Rear height motor (Up) |
Battery (+) |
Frout tilt switch (Up) |
| 4 |
Slide motor (Front) |
- |
Rear height switch (Up) |
| 5 |
Cushion extension motor (Rear) |
Ground |
Cushion extension switch (Front) |
| 6 |
Recline motor (Rear) |
|
B-CAN (High) |
| 7 |
Front tilt motor (Up) |
B-CAN (Low) |
| 8 |
Front tilt motor (Down) |
lumbar switch (Down) |
| 9 |
Rear height motor (Down) |
- |
| 10 |
Slide motor (Rear) |
Slide hall sensor |
| 11 |
|
Front tilt hall sensor |
| 12 |
lumbar switch (Rear) |
| 13 |
Seat position sensor power |
| 14 |
IGN1 |
| 15 |
Slide switch (Rear) |
| 16 |
Recline switch (Rear) |
| 17 |
Front tilt switch (Down) |
| 18 |
Rear height switch (Down) |
| 19 |
Cushion extension switch (Rear) |
| 20 |
Ground |
| 21 |
lumbar switch (Up) |
| 22 |
lumbar switch (Front) |
| 23 |
- |
| 24 |
Recline hall sensor |
| 25 |
Rear height hall sensor |
| 26 |
Cushion extension hall sensor |
| 27 |
- |
| 28 |
Battery (+) |
