Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the front seat assembly.
(Refer to Body - "FRONT SEAT ")
- Remove the front seat under cover.
(Refer to Body - "FRONT SEAT ")
- Disconnect the power seat module connector (A).

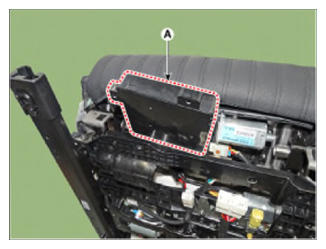

- Remove the power seat module (A) after loosening the screws.
