Calibration procedure

  1. Connect the GDS. (CAN line or OBD connector)
  2. Turn ignition switch on.
  3. Press calibration button of the Steering Wheel Angle Sensor.
  4. HECU calibration procedure is performed. (Calibration records, DTC codes erasure)

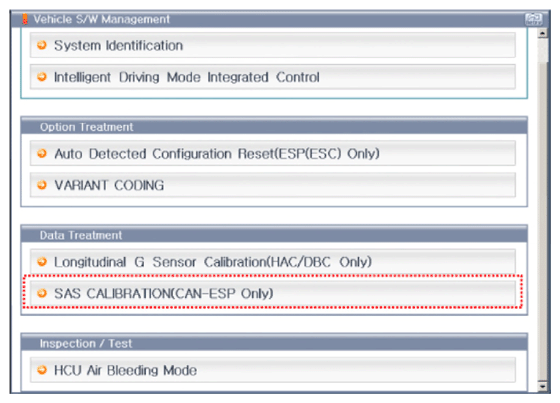

G13541068Courtesy of HYUNDAI MOTOR AMERICA

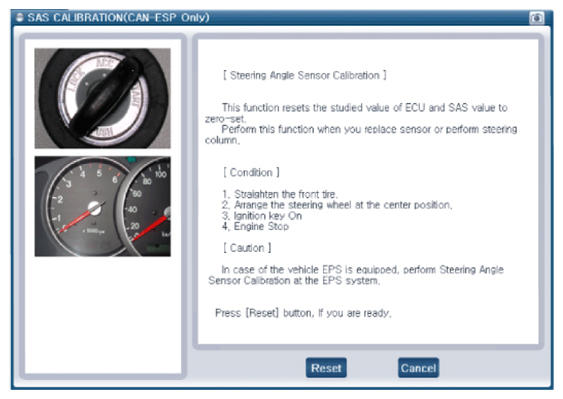

G13541069Courtesy of HYUNDAI MOTOR AMERICA
