Repair Procedures: Removal

  1. Turn the ignition switch OFF.

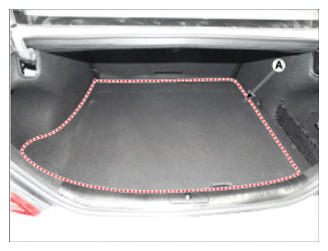

  2. Remove the luggage covering (A).
    G13539141Courtesy of HYUNDAI MOTOR AMERICA

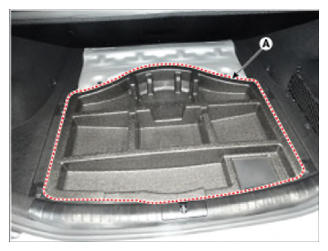

  3. Remove the luggage center tray (A).
    G13539142Courtesy of HYUNDAI MOTOR AMERICA

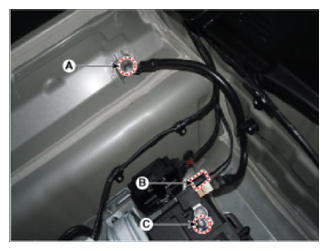

  4. Disconnect the battery negative (-) terminal (A).
  5. Disconnect the battery sensor connector (B).
  6. Remove the battery sensor by loosening the mounting bolts (C).
    G13539143Courtesy of HYUNDAI MOTOR AMERICA
