Home › Genesis › 2019 › G70 2.0T Advanced, AWD › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 2.0L › Intake Manifold › Components & Components Location › Components

Components & Components Location: Components

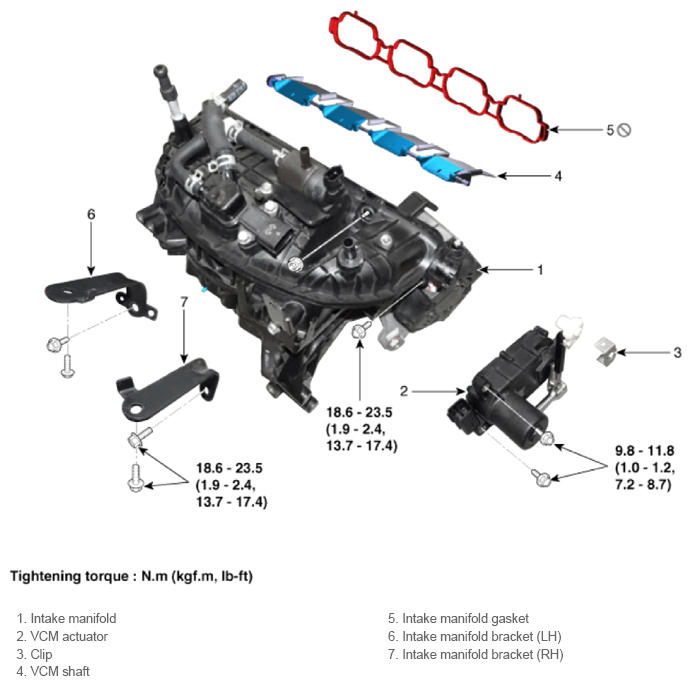

Fig 1: Intake Manifold Components Location With Torque Specification
G13539022Courtesy of HYUNDAI MOTOR AMERICA
