Home › Genesis › 2019 › G70 2.0T Advanced, AWD › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System - 2.0L › Intercooler › Components & Components Location › Components

Components & Components Location: Components

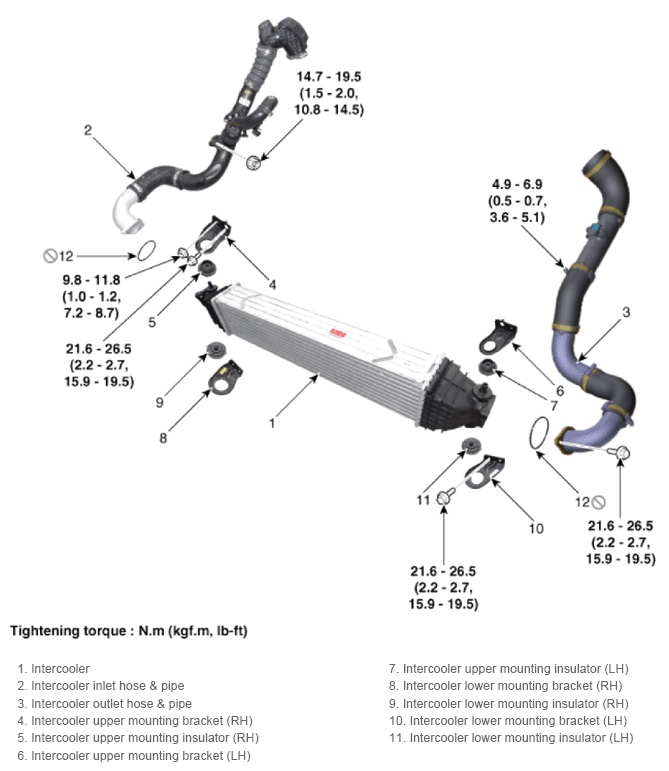

Fig 1: Intercooler Components Location With Torque Specification
G13539010Courtesy of HYUNDAI MOTOR AMERICA
