Home › Genesis › 2019 › G70 2.0T Advanced, AWD › Repair and Diagnosis › Engine Mechanical › Lubrication System - 2.0L › Balance Shaft Module › Components & Components Location › Components

Components & Components Location: Components

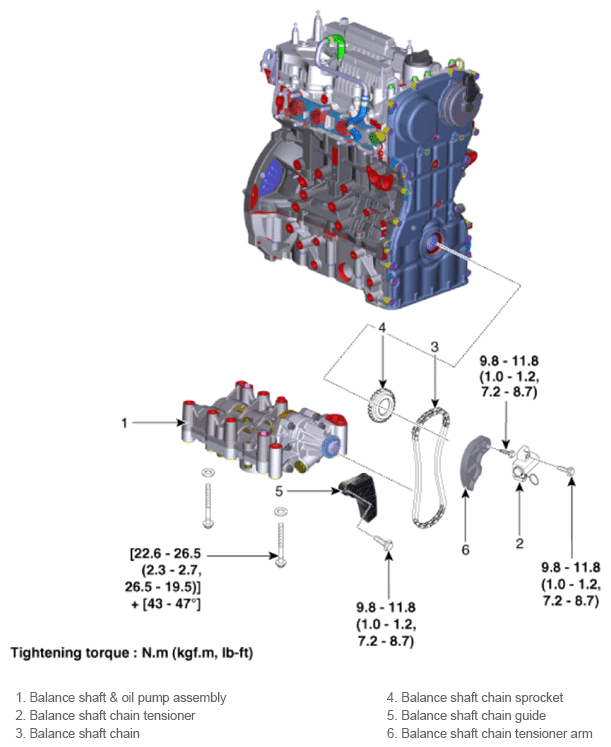

Fig 1: Balance Shaft Module Components Location With Torque Specification
G13538962Courtesy of HYUNDAI MOTOR AMERICA
