Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the rear transverse trim.
(Refer to Body - "REAR TRANSVERSE TRIM ")
- Remove the luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

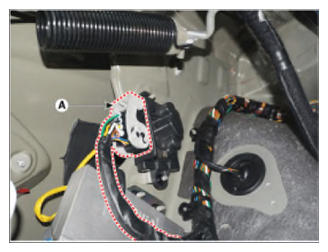

- Disconnect the fuel pump control module connector (A).

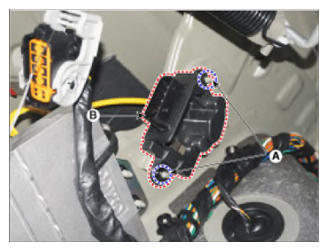

- Remove the mounting nuts (A), and then remove the fuel pump control module (B) from the vehicle.
