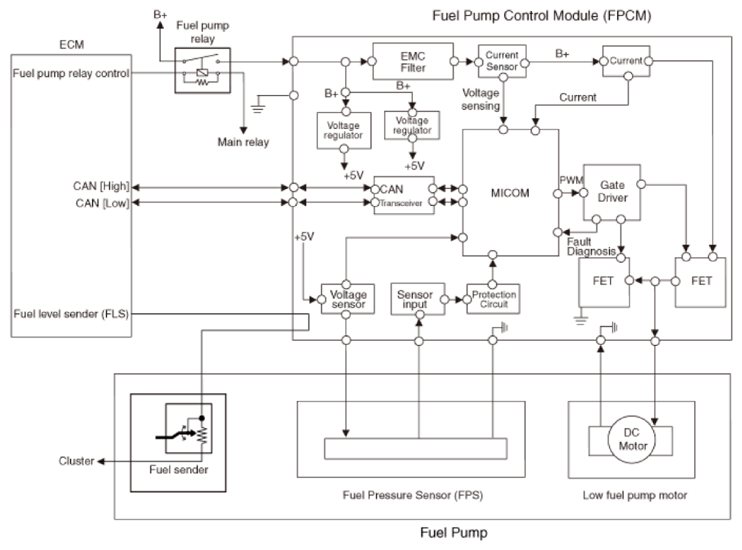

Home › Genesis › 2019 › G70 2.0T Advanced, RWD, Automatic Trans › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System - 2.0L › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
