Repair Procedures: Removal

Remove the console upper cover using the screw driver and remover.

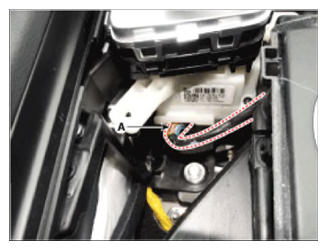

Disconnect the shift lever main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

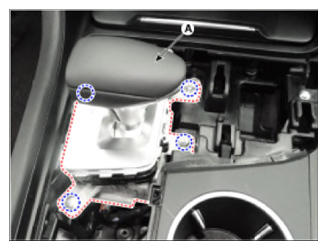

Remove the E-shift lever mounting bolt and then removing the E-shift lever (A).

Courtesy of HYUNDAI MOTOR AMERICA
