Repair Procedures: Removal

  1. Turn ignition switch OFF and the disconnect the battery negative (-) cable.
  2. Raise the vehicle, and make sure it is securely supported.

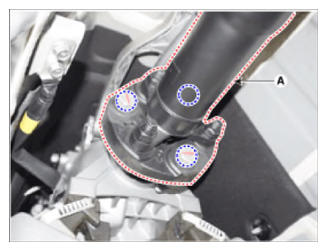

  3. Separate the propeller shaft assembly (A) after loosening the bolts.

    Tightening torque  :

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

    G13539715Courtesy of HYUNDAI MOTOR AMERICA

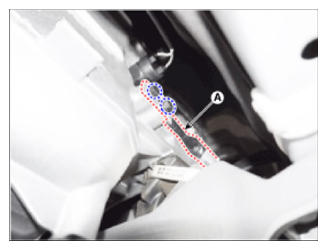

  4. Loosen the bolts and then removing the ground line (A).
    G13539716Courtesy of HYUNDAI MOTOR AMERICA

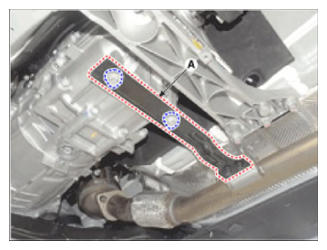

  5. Loosen the bolts and then removing the muffler bracket (A).

    Tightening torque  :

    29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)

    G13539717Courtesy of HYUNDAI MOTOR AMERICA

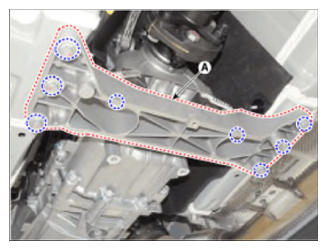

  6. Remove the transmission cross member (A) after loosening the bolts and nuts.

    Tightening torque  :

    Bolts: 58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

    Nuts: 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m 21.7 - 25.3 lb-ft)

    G13539718Courtesy of HYUNDAI MOTOR AMERICA

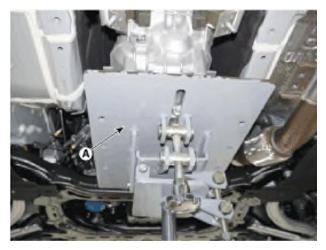

    CAUTION:
    • Supporting the transmission on a jack (A).
      G13539719Courtesy of HYUNDAI MOTOR AMERICA

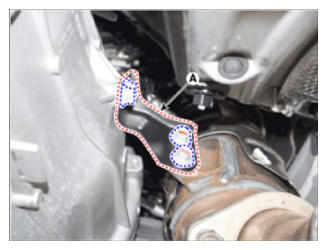

  7. Remove the exhaust manifold stay (A).

    Tightening torque  :

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

    G13539720Courtesy of HYUNDAI MOTOR AMERICA

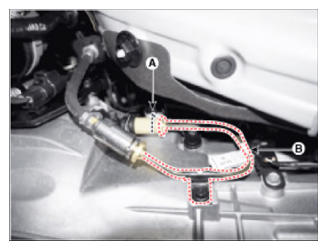

  8. Remove the clip (A) and clutch tube (B) after loosening the bolt of wiring bracket.
    G13539721Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the vacuum pump.

    (Refer to Brake System - "VACUUM PUMP ")

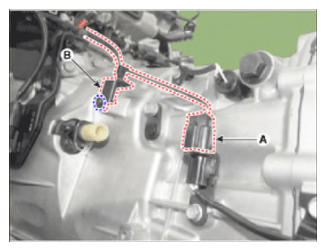

  10. Disconnect the back-up lamp switch connector (A) and then remove the bracket of wiring (B).
    G13539722Courtesy of HYUNDAI MOTOR AMERICA

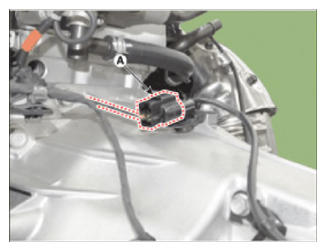

  11. Disconnect the neutral switch connector (A).
    G13539723Courtesy of HYUNDAI MOTOR AMERICA

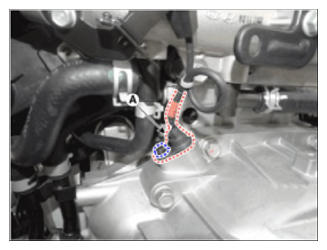

  12. Disconnect the CKP sensor connector (A) after loosening the bolt.
    G13539724Courtesy of HYUNDAI MOTOR AMERICA
  13. Separate the select rod.

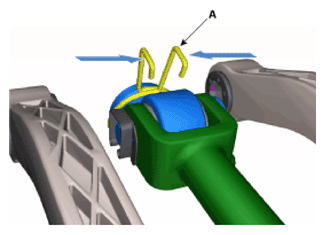

    1. Press the clip (A) on the both sides and pull them towards the inside.
      G13539725Courtesy of HYUNDAI MOTOR AMERICA
    2. Separate the retension clip (A) by pulling it toward the "F" arrow.
      G13539726Courtesy of HYUNDAI MOTOR AMERICA
    3. Remove the select rod shaft (B).
      G13539727Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Push the retention clip enough and remove the shaft to the bottom.
      • When installing the retention clip, cover the shaft's upper and bottom parts completely with the retention clip so that the shaft is not out of its place.

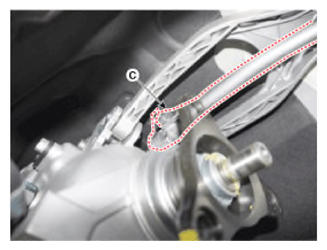

    4. Separate the select rod (C) from the transmission.
      G13539728Courtesy of HYUNDAI MOTOR AMERICA
  14. Separate the base bracket.

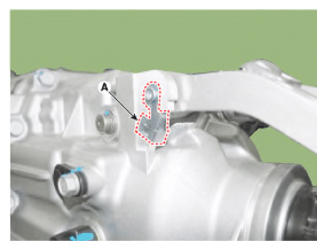

    1. Remove the left side clip (A).
      G13539729Courtesy of HYUNDAI MOTOR AMERICA

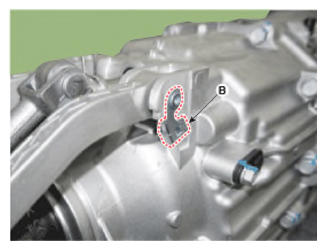

    2. Remove the right side clip (B).
      G13539730Courtesy of HYUNDAI MOTOR AMERICA

      Information

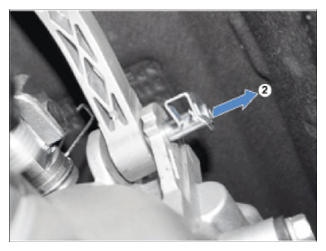

      CAUTION:

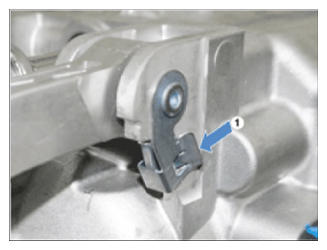

      • Remove the clip in the order of arrow direction.
      • Remove both clips in the same order.
      • When installing the do not reuse the clip.
        G13539731Courtesy of HYUNDAI MOTOR AMERICA
        G13539732Courtesy of HYUNDAI MOTOR AMERICA

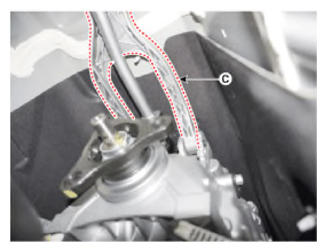

    3. Separate the base bracket (C) from the manual transmission.
      G13539733Courtesy of HYUNDAI MOTOR AMERICA

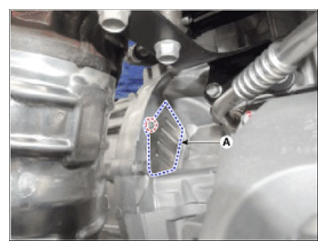

  15. Remove the dust cover (A).

    Tightening torque  :

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G13539734Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the manual transmission assembly.

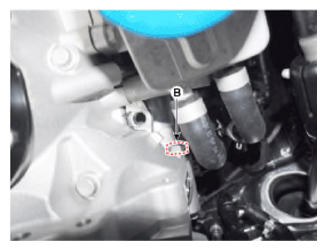

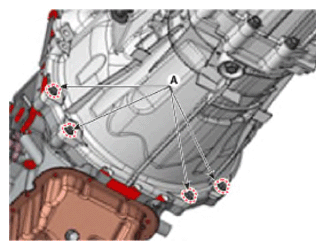

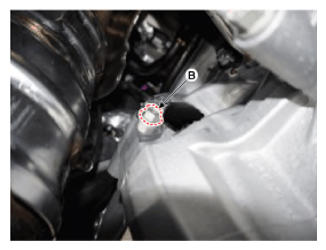

    1. Loosen the transmission lower mounting bolts (A), (B).

      Tightening torque  :

      1. 39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
      2. 34.3 - 46.1 N.m (3.5 - 4.7 kgf.m, 25.3 - 34.0 lb-ft)
      3. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
      4. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)

      [Transmission side -> Engine side]

      G13539735Courtesy of HYUNDAI MOTOR AMERICA

      [Engine side ->Transmission side]

      G13539736Courtesy of HYUNDAI MOTOR AMERICA
      G13539737Courtesy of HYUNDAI MOTOR AMERICA

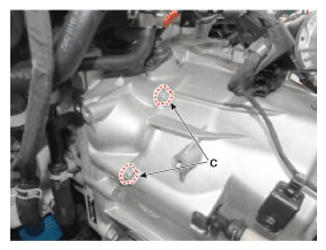

    2. Loosen the starter motor mounting bolts (C).
      G13539738Courtesy of HYUNDAI MOTOR AMERICA

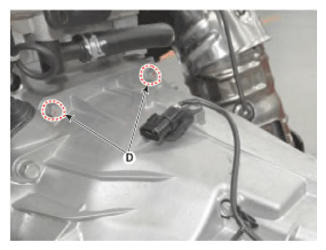

    3. Loosen the transmission upper mounting bolts (D).
      G13539739Courtesy of HYUNDAI MOTOR AMERICA

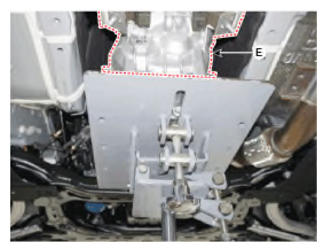

    4. Remove the manual transmission assembly (E).
      G13539740Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:
      • Be careful not to damage other system or parts near by when removing the engine and transmission assembly.
