Repair Procedures: Inspection

  1. Disconnect the negative (-) battery terminal.

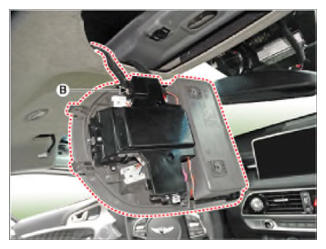

  2. Disconnect the connector (B).

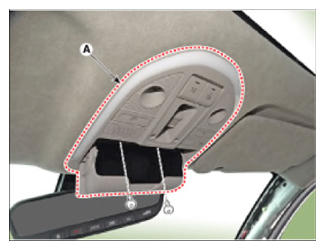

  3. Remove the overhead console (A) after loosening the screws.
    G13541687Courtesy of HYUNDAI MOTOR AMERICA
    G13541688Courtesy of HYUNDAI MOTOR AMERICA

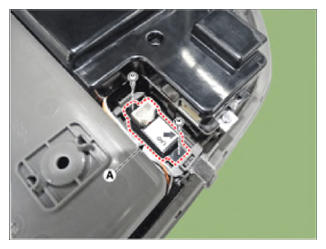

  4. Remove the mic (A) after loosening the screws.
    G13541689Courtesy of HYUNDAI MOTOR AMERICA
  5. Check for the continuity between the mic terminals.
