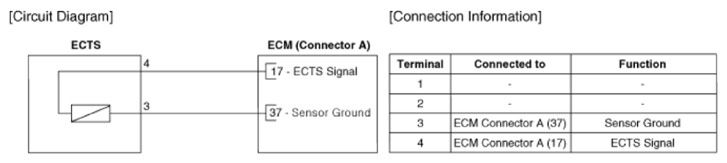

Home › Genesis › 2019 › G70 2.0T Dynamic, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Engine Coolant Temperature Sensor (ECTS) › Schematic Diagrams › Circuit Diagram › Notes
