Repair Procedures: Inspection

Turn ignition switch OFF.

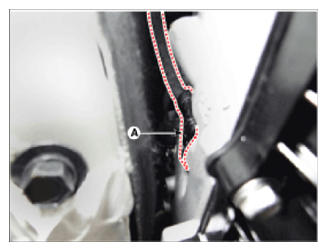

Disconnect the E-module connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Measure the resistance between oil temperature sensor terminal (15) and terminal (16).

Check that the resistance is within the specification.

Temp [(°C)°F]	Resistance (kΩ)
(-40) -40	139.5
(-20) -4.0	47.4
(0) 32.0	18.6
(20) 68.0	8.1
(40) 104.0	3.8
(60) 140.0	1.98
(80) 176.0	1.08
(100) 212.0	0.63
(120) 248.0	0.38
(140) 284.0	0.25
(160) 320.0	0.16
