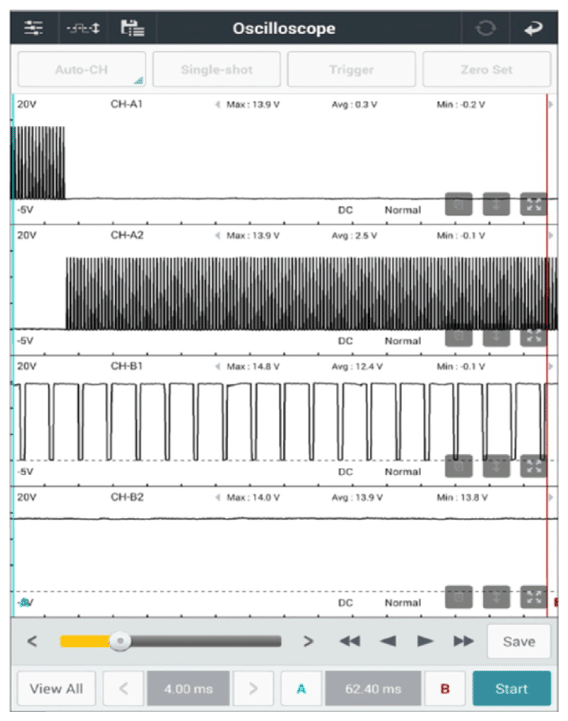

Signal Waveform

G13539456

Courtesy of HYUNDAI MOTOR AMERICA

There is no separate sensor inside E-CVVT. Valve timing is calculated by applying 4-flank type target wheel on the exhaust side and comparing CKPS and CMPS.
