Circuit Diagram

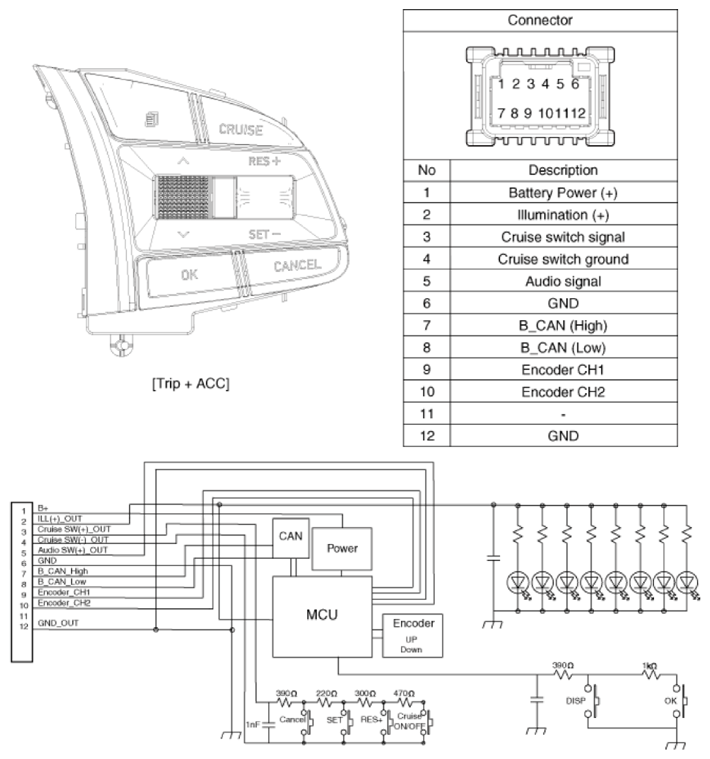

[Trip + ACC]

Courtesy of HYUNDAI MOTOR AMERICA

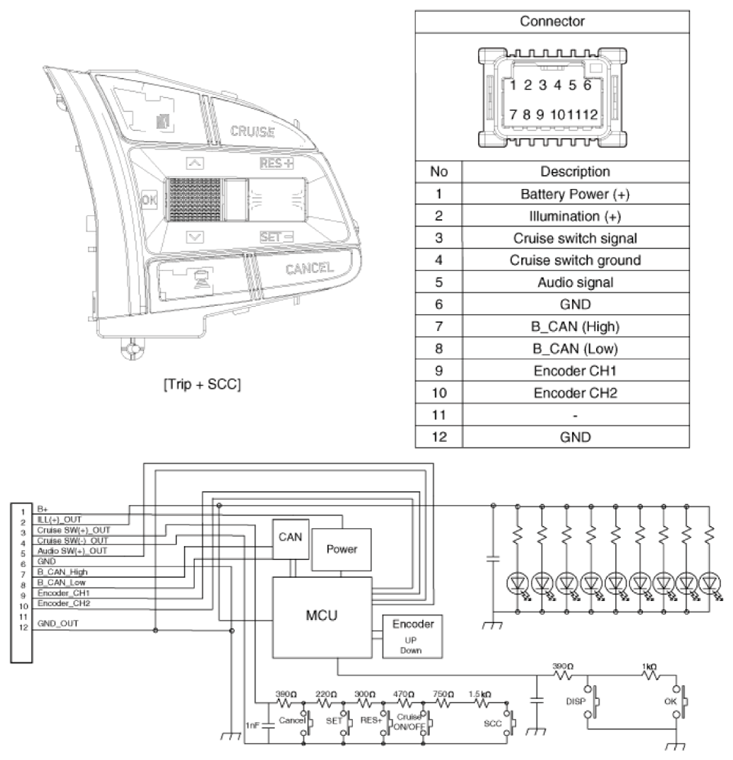

[Trip + SCC]

Courtesy of HYUNDAI MOTOR AMERICA

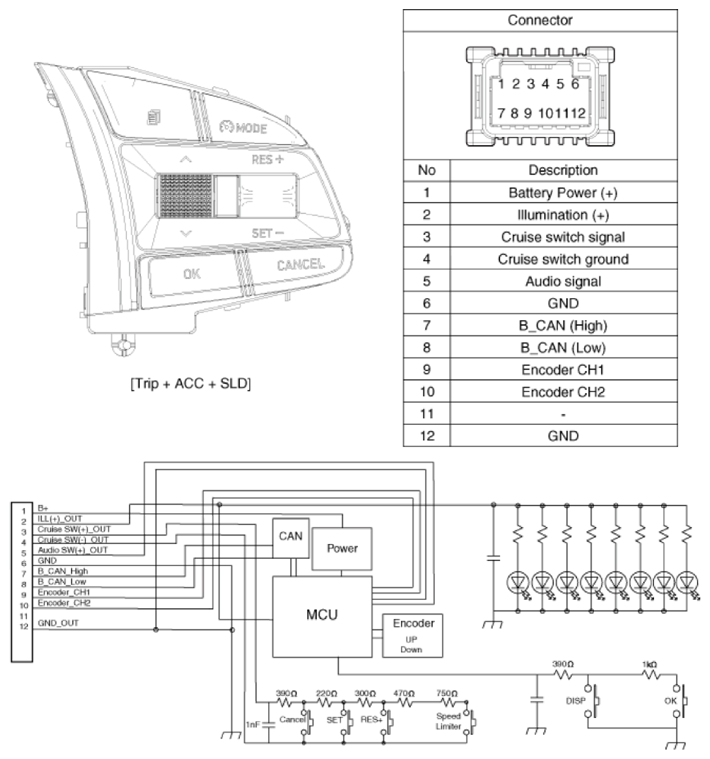

[Trip + ACC + SLD]

Courtesy of HYUNDAI MOTOR AMERICA

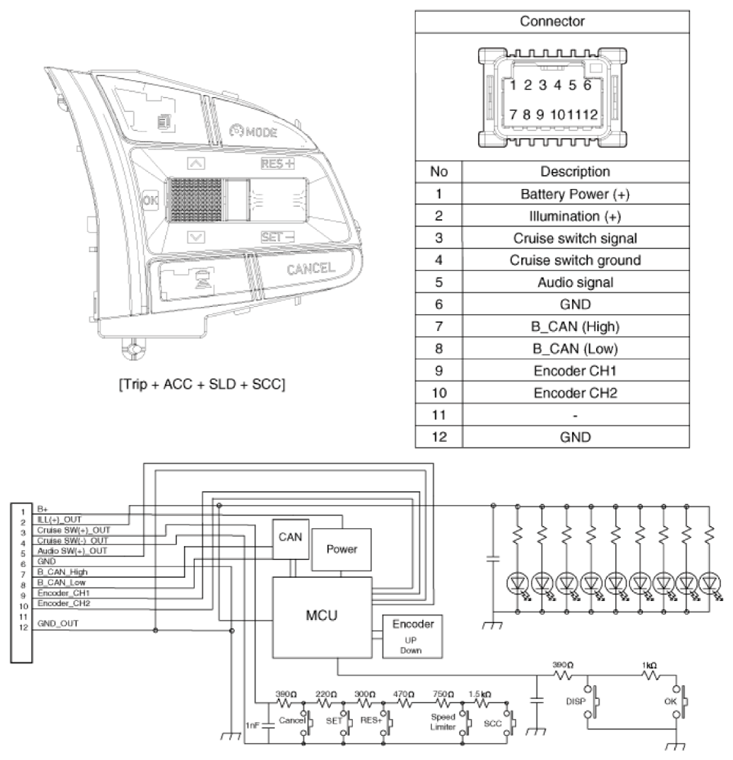

[Trip + ACC + SLD + SCC]

Courtesy of HYUNDAI MOTOR AMERICA
