Repair Procedures: Removal

1. Remove the front bumper cover.

   (Refer to Body - "FRONT BUMPER COVER ")

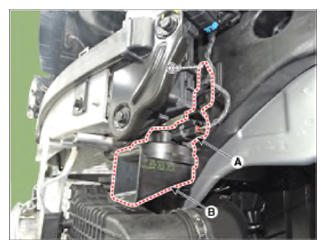

2. Disconnect the connector (A) and then remove the low-pitch horn after loosening the mounting bolt.

   Courtesy of HYUNDAI MOTOR AMERICA

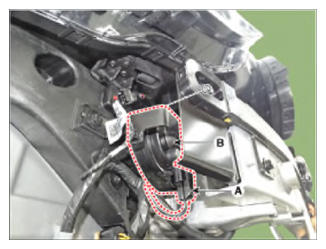

3. Disconnect the connector (A) and then remove the high-pitch horn after loosening the mounting bolt.

Courtesy of HYUNDAI MOTOR AMERICA
