Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the fuel filler cap after opening the fuel filler door.
- Lift the vehicle.
- Remove the rear-left wheel & tire and wheel house cover.
- Disconnect the fuel filler hose (A).

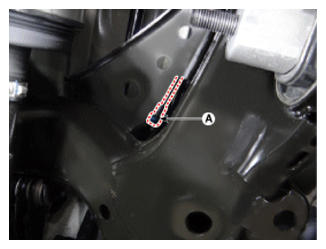

- Disconnect the vapor tube (A).
- Remove the filler-neck assembly from the vehicle after removing bracket mounting nuts (A).
