DTC C1200-01: Wheel Speed Sensor Front-LH Open/Short
›
Specification
›

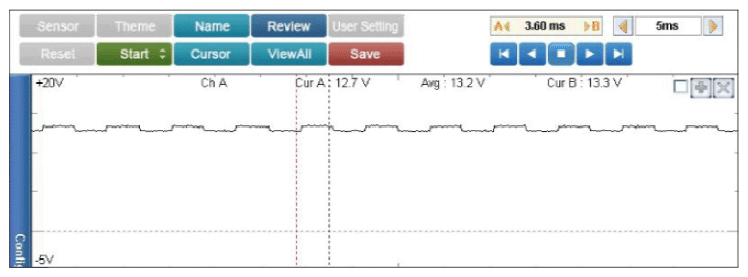

Signal Waveform And Data
Signal Waveform And Data
Courtesy of HYUNDAI MOTOR AMERICA
High: Approximately 13.3 V, Low: Approximately 12.7V
