Components & Components Location: Components

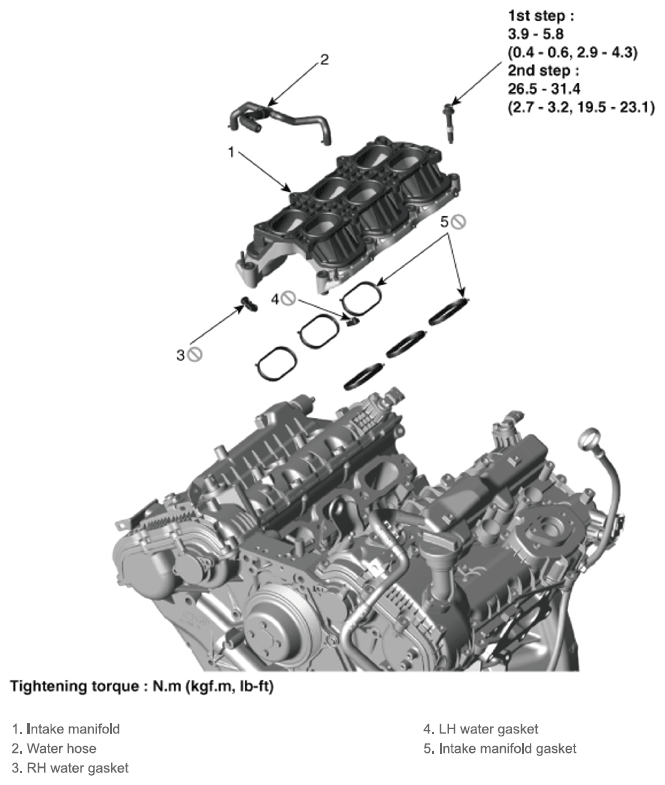

Fig 1: Intake Manifold Components Location With Torque Specification
G13543036Courtesy of HYUNDAI MOTOR AMERICA
