G70 3.3T Design, AWD
›
Repair and Diagnosis
›
Engine Mechanical
›
Intake And Exhaust System - 3.3L
›
Surge Tank
›
Components & Components Location
›
Components
Components & Components Location: Components

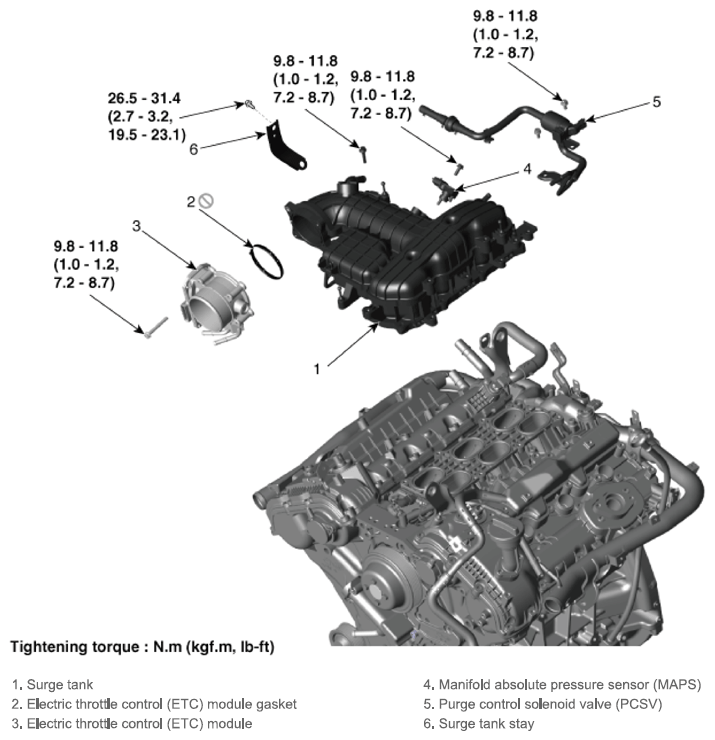

Fig 1: Surge Tank Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
