Components & Components Location: Components

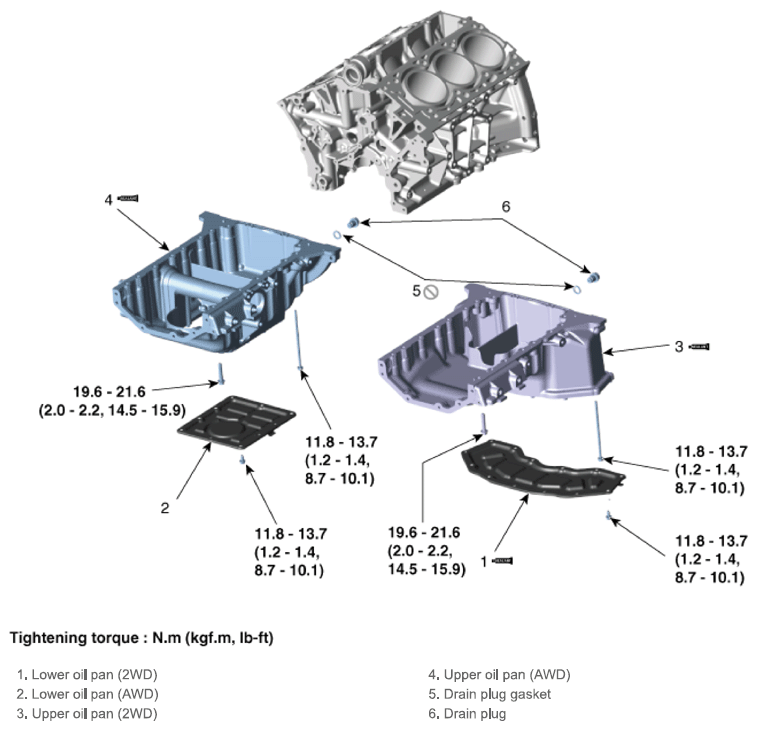

Fig 1: Oil Pan Components Location With Torque Specification
G13542964Courtesy of HYUNDAI MOTOR AMERICA
