Components & Components Location: Components

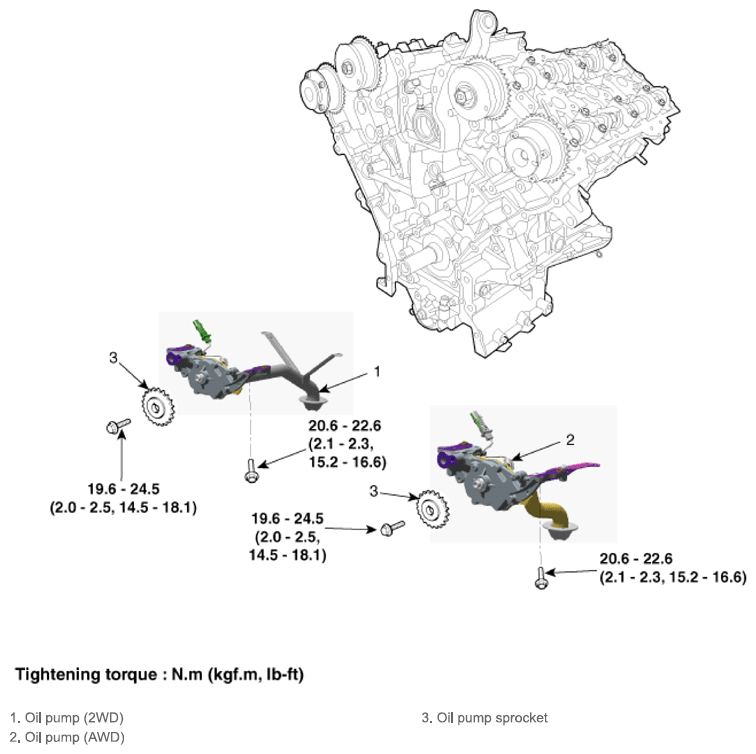

Fig 1: Oil Pump Components Location With Torque Specification
G13542989Courtesy of HYUNDAI MOTOR AMERICA
