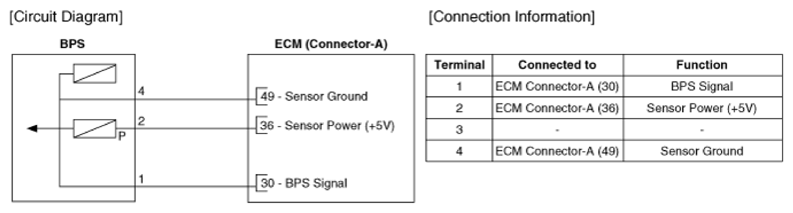

Home › Genesis › 2019 › G70 3.3T Design, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Boost Pressure Sensor (BPS) › Schematic Diagrams › Circuit Diagram › Notes
