Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

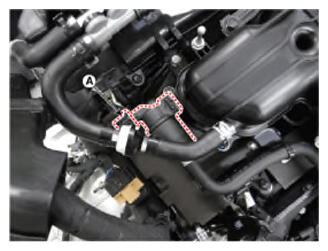

  2. Disconnect the purge control solenoid valve connector (A).
    G13543382Courtesy of HYUNDAI MOTOR AMERICA

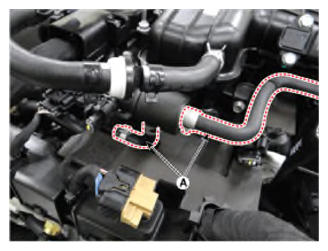

  3. Disconnect the vapor hoses (A) from the purge control solenoid valve.
  4. Remove the valve from the bracket.
G13543383Courtesy of HYUNDAI MOTOR AMERICA
