Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- When it is assembled, it must be free from invasive foreign matters and oil leakage.
- When it is installed, assembly grease (MCYL-2) must be applied adequately to inner surface of body and outer surface of tube guide.
- After tightening bolts temporarily, tighten the bolt completely at the same time with regulation torque.

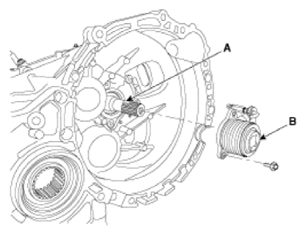

- Before installation, wipe the input shaft spline part (A) and inner part of release bearing (B) with a clean cloth.
- When it is installed, assembly grease (CASMOLY L9508) must be applied adequately to input shaft spline part (A) and inner part of release bearing (B).
- To install, reverse the removal procedures.
- After be equipped, perform bleeding air procedure in concentric slave cylinder after pouring the brake fluid.
