Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the ECM connector (A).
    G13543271Courtesy of HYUNDAI MOTOR AMERICA

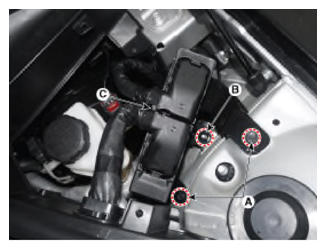

  3. Remove the ECM bracket assembly (C) after loosening the mounting bolt (A) and nuts (B).
    G13543272Courtesy of HYUNDAI MOTOR AMERICA

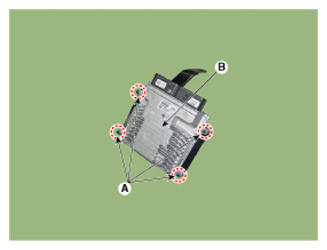

  4. Remove the ECM (B) after loosening the mounting nuts (A).
G13543273Courtesy of HYUNDAI MOTOR AMERICA
