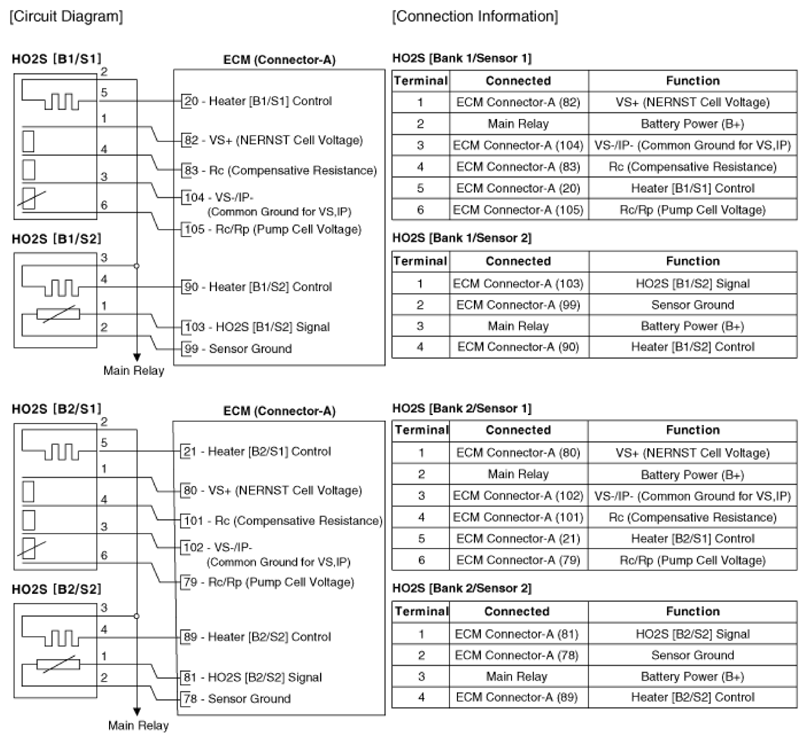

Home › Genesis › 2019 › G70 3.3T Design, RWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram › Notes
