Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
- Install the water pump belt.

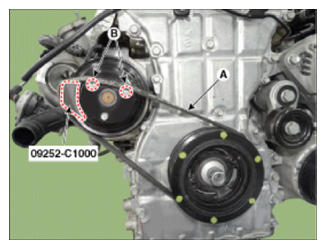

- Insert the SST (09252-C1000) between the water pump pulley and the water pump belt
- Install the water pump belt (A) by turning the damper pulley clockwise.
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
- Install the water pump belt while being careful not to damage the water pump belt caused by water pump pulley mounting bolts (B).

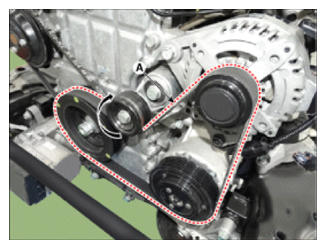

- For release the tension, turn the drive belt tensioner clockwise then install the drive belt (A).
Courtesy of HYUNDAI MOTOR AMERICA
- Install in the reverse order of removal.
