[Bank 2/Sensor1]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

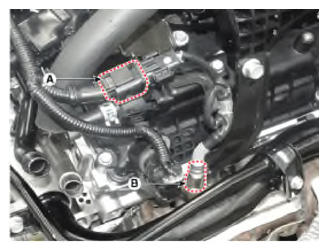

  2. Disconnect the connector (A).
  3. Remove the sensor (B).
G13543333Courtesy of HYUNDAI MOTOR AMERICA
