Repair Procedures: Installation

  1. Installation in the reverse order of removal.
  2. Perform the ESC variant coding.
    1. Connect the GDS to the data link connector located underneath the dash panel.
    2. Select a model and ECS.
      G12666247Courtesy of HYUNDAI MOTOR AMERICA
      G12666248Courtesy of HYUNDAI MOTOR AMERICA

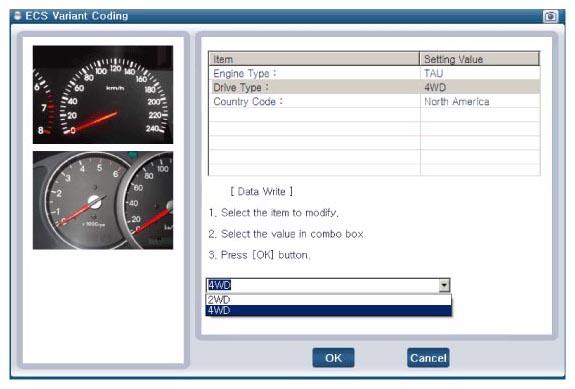

      G12666249Courtesy of HYUNDAI MOTOR AMERICA

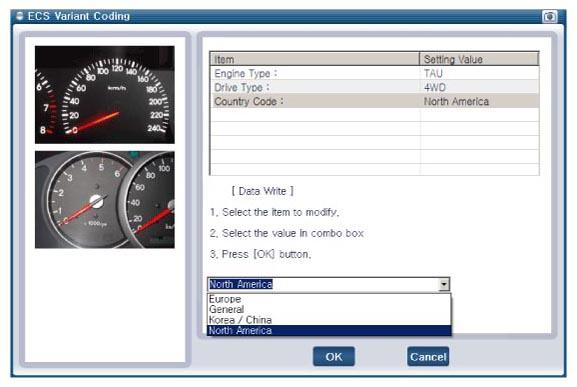

      G12666250Courtesy of HYUNDAI MOTOR AMERICA

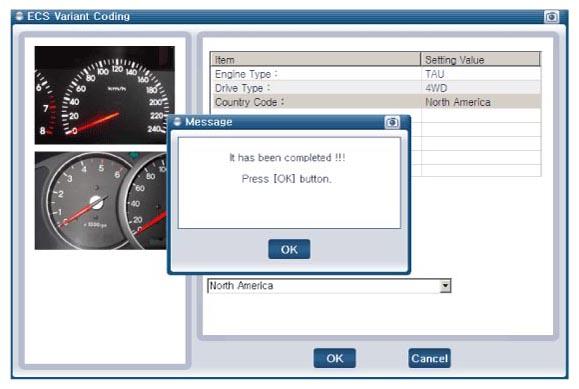

      G12666251Courtesy of HYUNDAI MOTOR AMERICA
