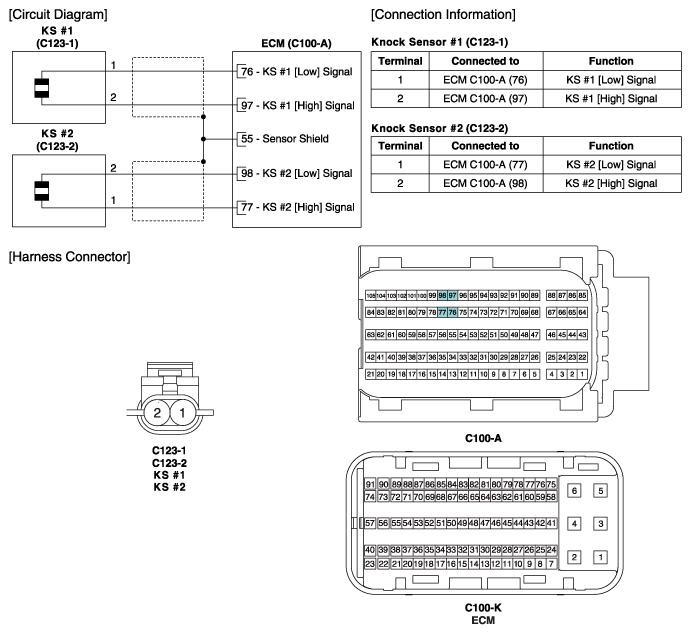

Home › Genesis › 2019 › G90 3.3T Premium, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Knock Sensor (KS) › Schematic Diagrams › Circuit Diagram
