Tolerance Compensation Environments

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

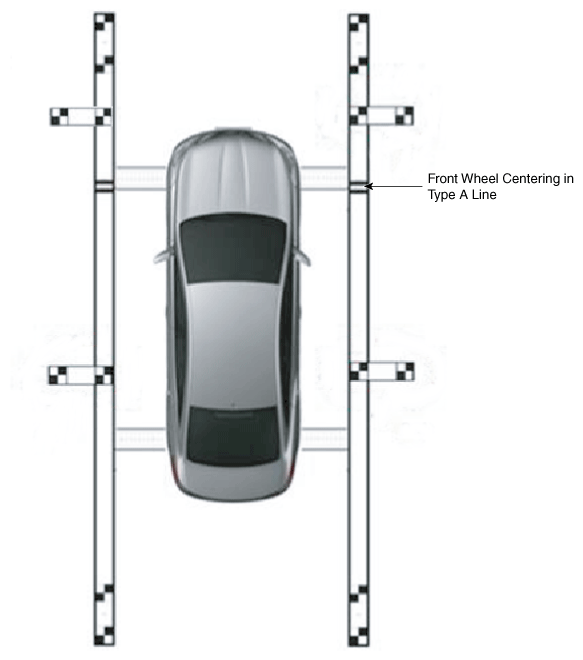

Fig 1: Multi-View Camera System Tolerance Compensation Environments
G11419820Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • There are two types of tolerance compensation [Manual Tolerance Compensation] and [Automatic Tolerance Compensation].
  • The service center with the Multi-view Camera exclusive workshop performs [Automatic Tolerance Compensation].
  • The maintenance environment lacking an Multi-view Camera exclusive workshop performs [Manual Tolerance Compensation].
