Component Location

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

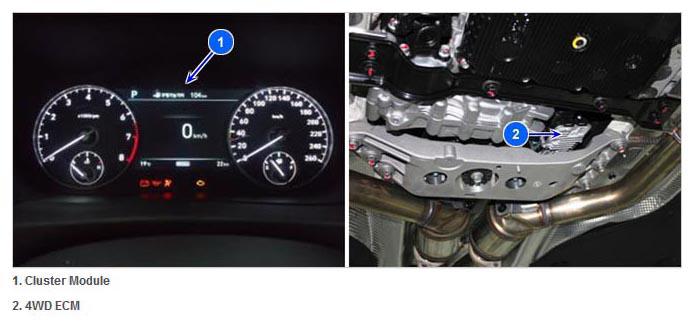

Fig 1: Locating Cluster Module And 4WD ECM Components

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Cluster: "INSTRUMENT CLUSTER"
4WD (4 Wheel Drive system): "4WD ECM"
