Clock Spring

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

If, as a result of the following checks, even one abnormal point is discovered, replace the clock spring with a new one.
Check connectors and protective tube for damage, and terminals for deformities.

Fig 1: Exploded View Of Steering Wheel

Courtesy of HYUNDAI MOTOR AMERICA

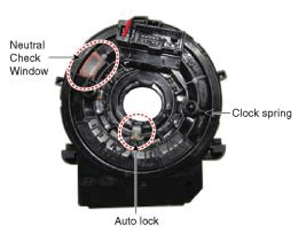

Fig 2: Locating Clock Spring, Neutral Check Window And Auto Lock

Courtesy of HYUNDAI MOTOR AMERICA
