Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable and wait for at least three minutes before beginning work.
Put a flat tool (Ø4mm) into a guide hole located in the bottom of steering wheel and press a spring.

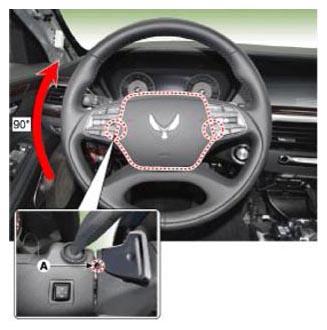

Fig 1: Locating Guide Hole Located In Bottom Of Steering Wheel
Courtesy of HYUNDAI MOTOR AMERICA

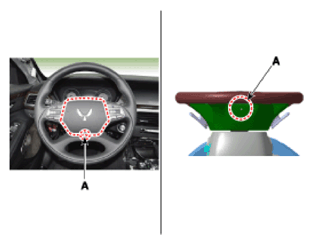

Fig 2: Inserting Flat Tool Into Guide Hole In Bottom Of Steering Wheel
Courtesy of HYUNDAI MOTOR AMERICA
WARNING:
- When put a tool into a hole, make sure not to damage an airbag cushion by a tool.
Turn a steering wheel anti-clockwise, so make a guide hole (A) displayed on the right side.
Put a tool into a hole (B) and bend back a fixed DAB spring.

Make sure to pull DAB cover when bend back the spring.

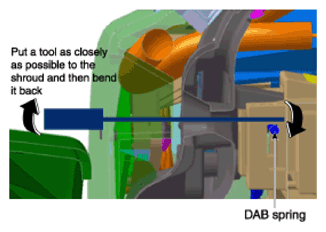

Fig 3: Turning Steering Wheel Clockwise
Courtesy of HYUNDAI MOTOR AMERICA

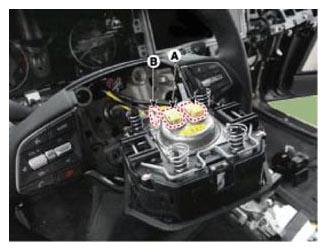

Fig 4: Bending Flat Tool Inside DAB Cover
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.
Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).

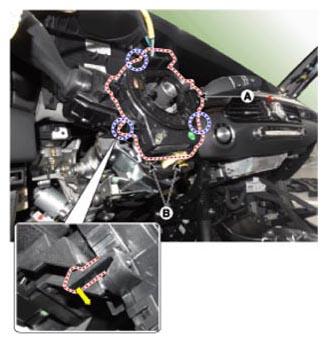

Fig 5: Locating Driver Airbag Module Connector And Horn Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the shroud lower panel and shroud upper panel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Remove the clock spring (A) after disconnecting the clock spring connectors (B).

Fig 6: Removing Clock Spring

Courtesy of HYUNDAI MOTOR AMERICA
