Transmission Control Module (TCM): Removal: Notes

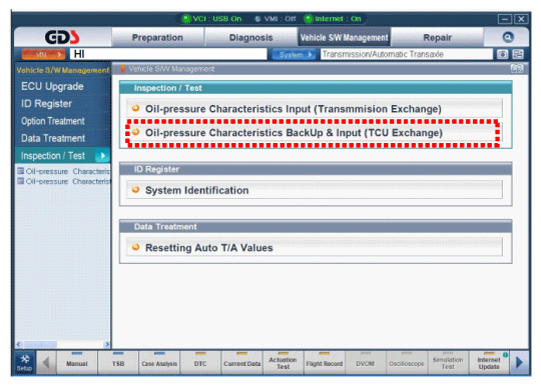

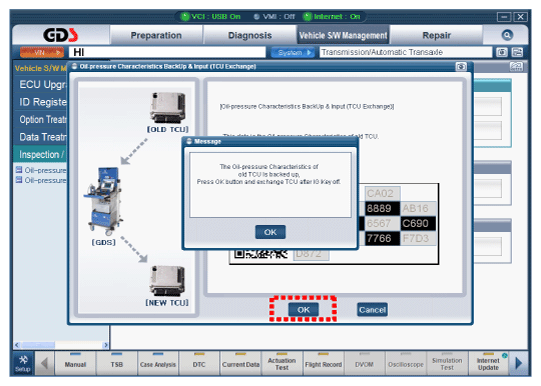

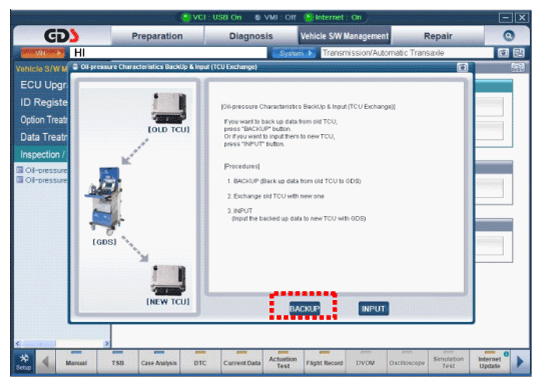

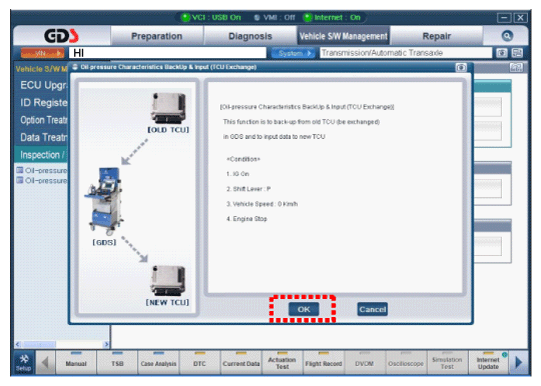

- Backup Oil-Pressure Characteristics of old TCM in the GDS.
- Turn ignition switch OFF.
- Disconnect the negative (-) battery cable.
- Remove the cover (A) after removing the clips.
- Disconnect the ECM connector (A) and TCM connector (B).
- Remove the TCM & ECM after removing the bolts (A) and nut (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Remove the TCM (B) after removing the nuts (A).
