[Gasoline 3.3]

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Replace O-Ring (A) before reinstalling the AWD ITA (ECU).
G12716252Courtesy of HYUNDAI MOTOR AMERICA
  1. Check the connector pin for erosion.
  2. Install the new 4WD ITA (ECU) (B).
  3. Tighten the fixings to 22 Nm (2.2 kgf.m, 15.9 lb-lf).
    G12716253Courtesy of HYUNDAI MOTOR AMERICA
  4. Check the connector pin for erosion.
  5. Connect vehicle wires and 4WD ITA (ECU) connector (A).
    CAUTION:
    • If the ITA is changed it should be paid attention to the position of the Dihedron (interface between actuator shaft of the ITA to the transfer case).
    G12716254Courtesy of HYUNDAI MOTOR AMERICA
  6. Install the Under Cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  7. IG Key "ON" Engine OFF.

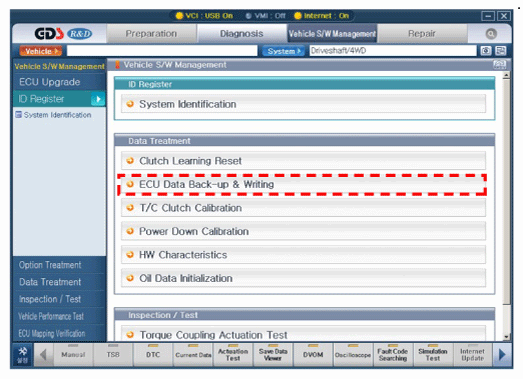

  8. To write the Transfer Case Data in new ITA, select "ECU Data Back-up & Writing" service of GDS.
    G12716255Courtesy of HYUNDAI MOTOR AMERICA

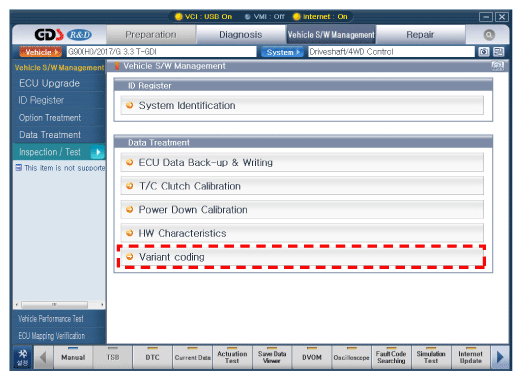

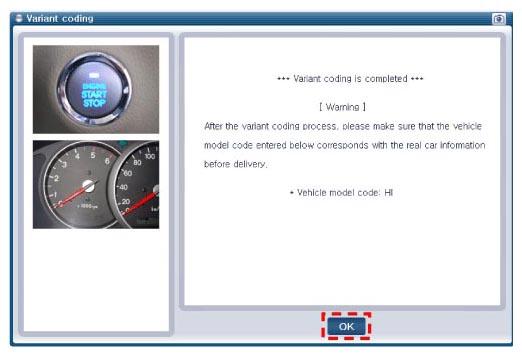

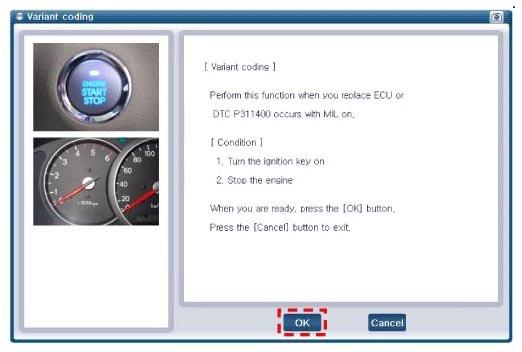

  9. Write vehicle variant code: HI
    G12716256Courtesy of HYUNDAI MOTOR AMERICA
    G12716257Courtesy of HYUNDAI MOTOR AMERICA
    G12716258Courtesy of HYUNDAI MOTOR AMERICA

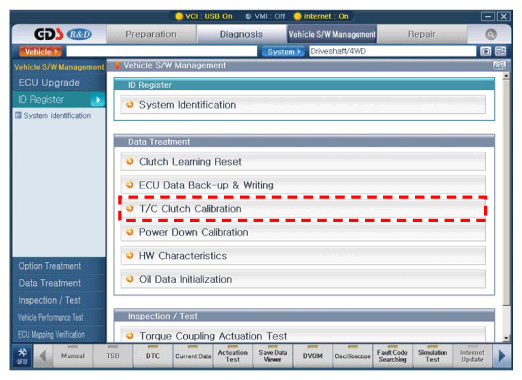

  10. To perform the initial Calibration, select "T/C Clutch Calibration" service of GDS.
    G12716259Courtesy of HYUNDAI MOTOR AMERICA
  11. IG Key "OFF", and wait for 10 seconds or so.
  12. IG Key "ON", engine "OFF".
  13. Check if Transfer Case Data are written correctly using "ECU Data Back-up & Writing" service of GDS.
  14. Check DTCs, for pending DTC, and if there are any pending DTCs, delete them.
  15. If there are still pending DTCs or incorrect written data, turn IG off and repeat the whole procedure from No. 5.
  16. No DTC's available and correct backup data written, service procedure is successfully done.
