Repair Procedures: Inspection

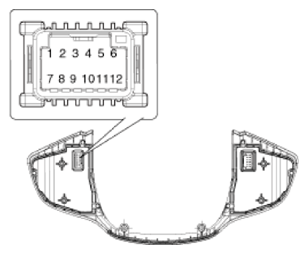

  1. Check for resistance between terminals in each switch position.
    G13539203Courtesy of HYUNDAI MOTOR AMERICA
    Function switch Terminal Resistance (±3%)
    CANCEL 3 - 4 390Ω
    SET- 3 - 4 610Ω
    RES + 3 - 4 910Ω
    CRUISE 3 - 4 1.38 kΩ
