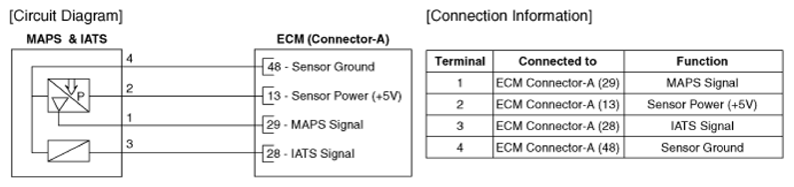

Home › Genesis › 2020 › G70 3.3T Elite, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram › Notes
