Components And Components Location: Components

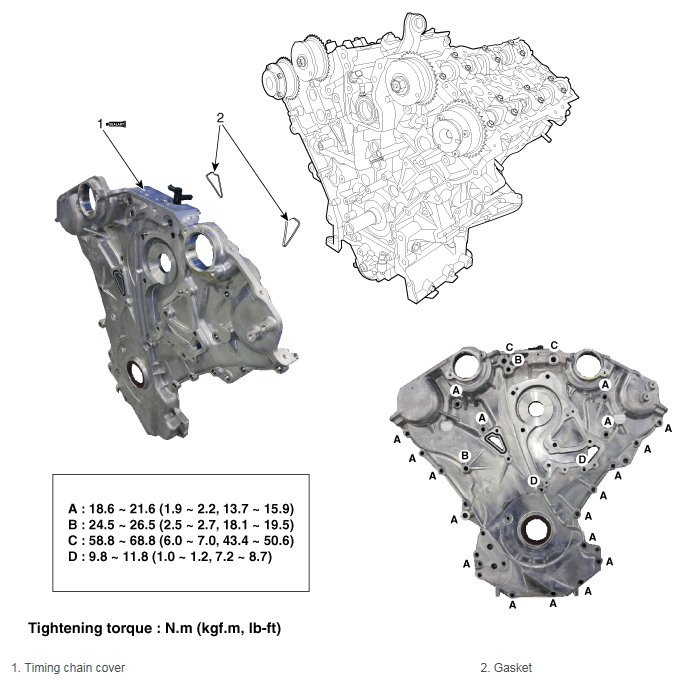

Fig 1: Timing Chain Cover Components With Torque Specification
G12662602Courtesy of HYUNDAI MOTOR AMERICA
