Components And Components Location: Components

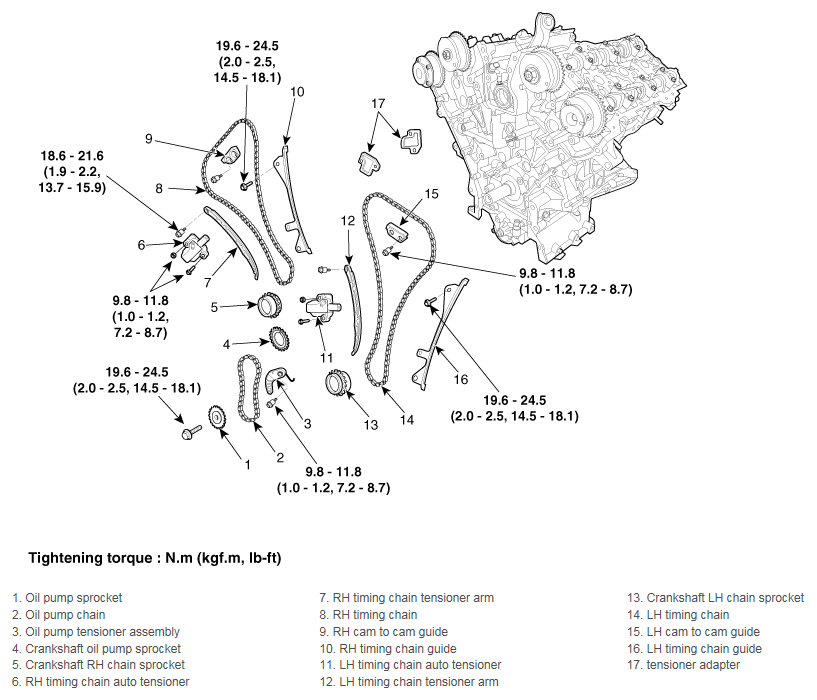

Fig 1: Timing Chain Components With Torque Specification
G12662610Courtesy of HYUNDAI MOTOR AMERICA
