Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Input oil-pressure characteristics received backup in new TCM.

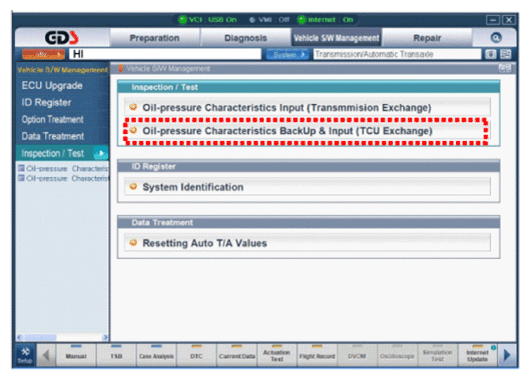

    G13547807Courtesy of HYUNDAI MOTOR AMERICA

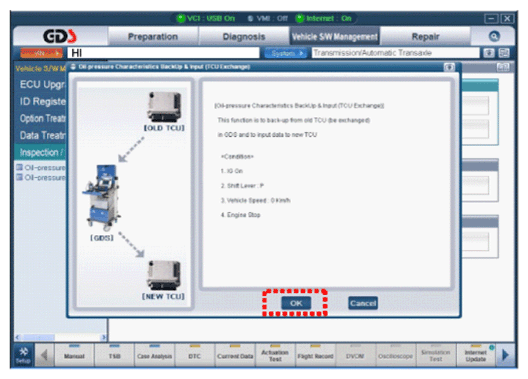

    G13547808Courtesy of HYUNDAI MOTOR AMERICA

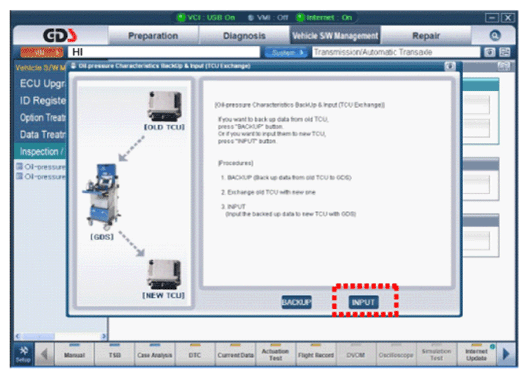

    G13547809Courtesy of HYUNDAI MOTOR AMERICA

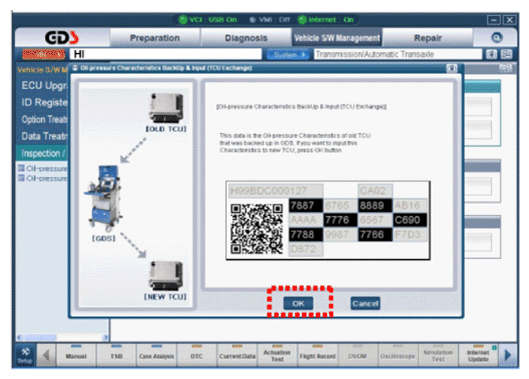

    G13547810Courtesy of HYUNDAI MOTOR AMERICA

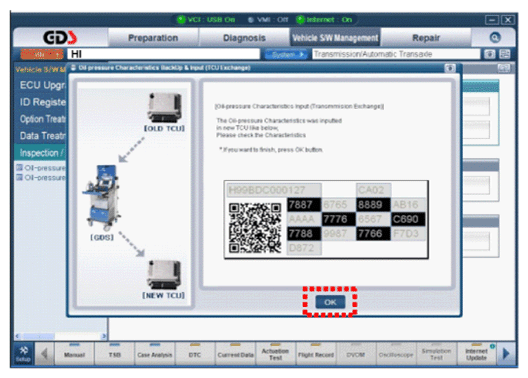

    G13547811Courtesy of HYUNDAI MOTOR AMERICA
  3. Perform the TCM adaptive values learning procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
