ETC (Electronic Throttle Control) System: Specifications: Specification: [TPS2]

Throttle angle TPS (%) Output Voltage (V) [Vref=5V]
C.T 57-61 2.85-3.05
W.O.T 0.6-8 0-0.4

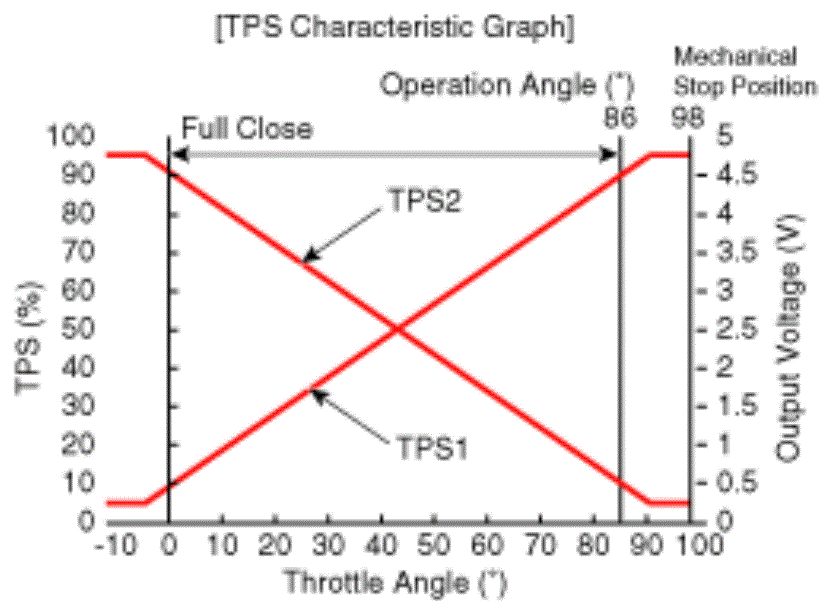

G13551311Courtesy of HYUNDAI MOTOR AMERICA
