[Bank 2/Sensor 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Remove the rear under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

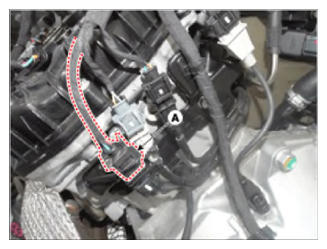

  4. Disconnect the heated oxygen sensor connector (A).
    G13551357Courtesy of HYUNDAI MOTOR AMERICA

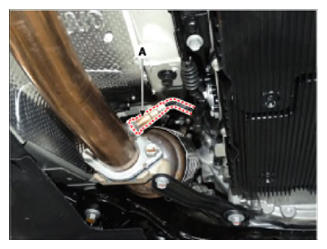

  5. Remove the heated oxygen sensor (A).
G13551358Courtesy of HYUNDAI MOTOR AMERICA
