Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System - "IGNITION COIL ")

  2. Using a spark plug wrench, remove the spark plug (A).
    NOTE:
    • Be careful that no contaminates enter into spark plug holes.

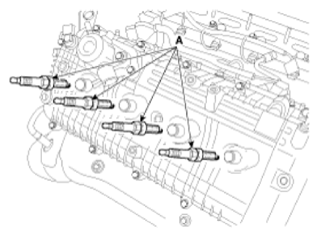

    [Bank 1]

    G13551174Courtesy of HYUNDAI MOTOR AMERICA

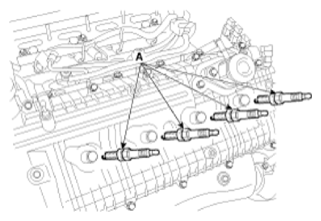

    [Bank 2]

    G13551175Courtesy of HYUNDAI MOTOR AMERICA
