FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

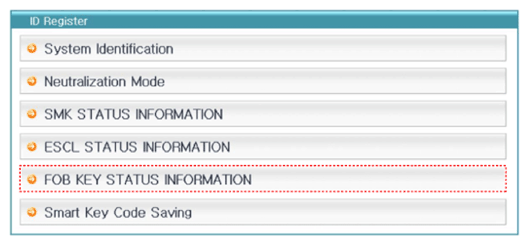

    G13549807Courtesy of HYUNDAI MOTOR AMERICA

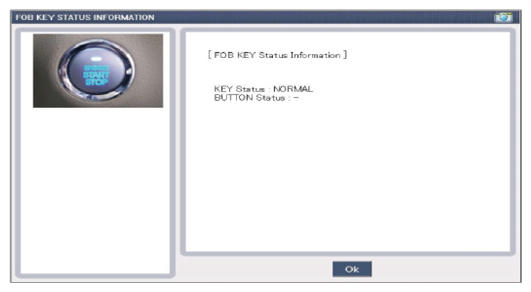

    G13549808Courtesy of HYUNDAI MOTOR AMERICA
